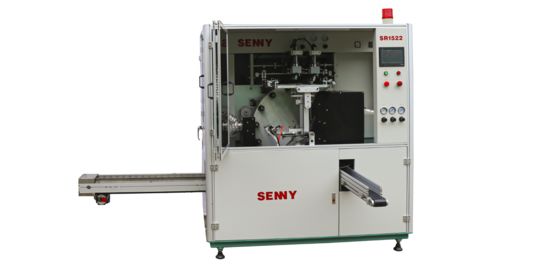

Fully Automatic 2-color Tube Screen Printing Machine with Plasma Treatment and LED-UV Curing
Détails sur le produit:
| Lieu d'origine: | Dongguan Chine |
| Nom de marque: | SENNY |
| Certification: | CE SGS |
| Numéro de modèle: | SFR1522 |
Conditions de paiement et expédition:
| Quantité de commande min: | 1pc |
|---|---|
| Prix: | negotiable |
| Détails d'emballage: | Paquet de contreplaqué |
| Délai de livraison: | 45 jours |
| Conditions de paiement: | T / T ou L / C |
| Capacité d'approvisionnement: | 10 PC / mois |
|
Détail Infomation |
|||
| Grade automatique: | Entièrement automatique | Type de plaque: | Écran d'imprimante |
|---|---|---|---|
| Services après-vente: | vidéo ou en ligne | Couleurs imprimées: | 2 couleurs |
| Mettre en évidence: | automatic screen printing machine for syringes,2-color tube screen printing machine,high-speed screen printing machine for eyebrow pencils |
||
Description de produit
Machine Features

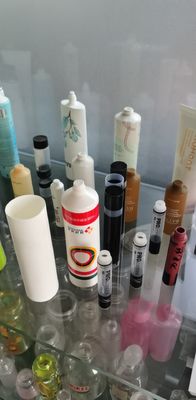

- The SFR1522 is suitable for 2-color UV ink screen printing on products including small round tubes, pens, eyebrow pencils, lipsticks, and syringes. It also specializes in 2-color IR ink screen printing for syringes, addressing the specific ink-curing needs of medical device packaging.
- Hot Stamping: Beyond screen printing, the SFR1522 is compatible with hot stamping processes on small rigid tubes, pens, eyebrow pencils, lipsticks, syringes, and other related items, enabling high-quality metallic or glossy decorative effects.
- Mechanical & Control Features: The machine adopts an integrated turntable structure, which combines full-process functionality with simple, straightforward operation. For enhanced reliability, it incorporates electrical parts from well-known brands, a precise PLC control system, and an easy-to-navigate touch screen—supporting stable operation in long-term production.
Optional Configuration
-
Plasma Surface Treatment Function: It can specifically improve the surface activity of various substrates (such as round cans/bottles made of plastic or glass). By breaking the surface tension of materials and removing tiny oil stains and impurities, it significantly enhances the adhesion fastness of subsequent inks, preventing printed patterns from delamination, scratching, and other issues. It is particularly suitable for scenarios like cosmetics and daily necessities, where high durability of packaging appearance is required.
-
LED-UV Curing Function: It adopts a high-efficiency LED light source to achieve rapid ink curing. Compared with traditional curing methods, it not only shortens the single curing time to improve production efficiency but also has the advantages of low energy consumption and low heat release. This can reduce damage to heat-sensitive substrates, while ensuring that printed colors are full and stable, and the bright texture of the packaging is maintained for a long time.
-
When the two functions are used together, the plasma surface treatment lays a foundation for printing quality, while the LED-UV curing efficiently locks in the printing effect. This forms a complete "pretreatment-curing" process loop, helping the equipment balance quality and production capacity in the printing of special-shaped packaging such as syringe and eyebrow pencil.

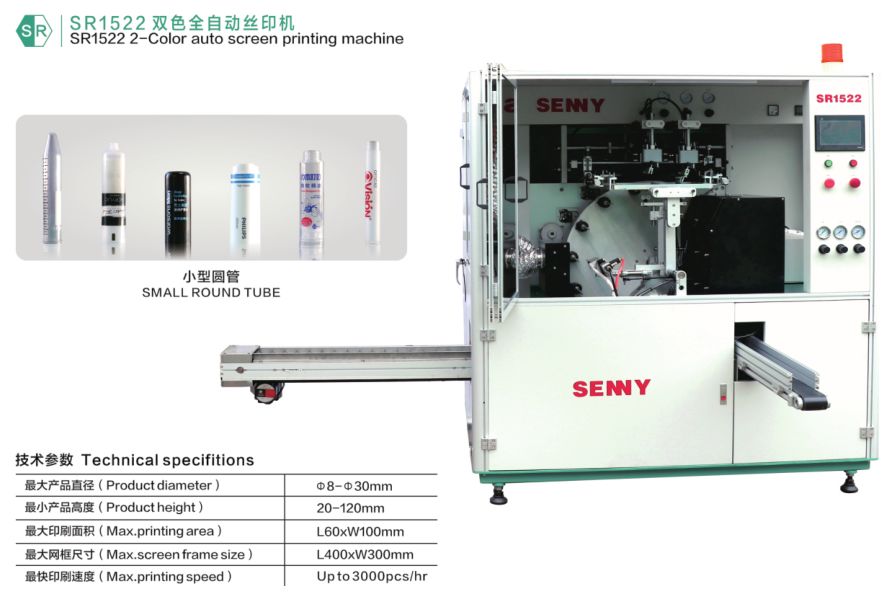

Technical Parameters
|
Machine Model
|
SFR1522 |
| Printing color | 2 |
|
Printing Speed
|
50 pcs/min
|
|
Roun tube Diameter
|
5–30mm
|
|
Round tube length
|
20-120mm
|
|
Max Printing Length
|
100mm*H120mm
|
printing your vision
About Us
Senny provides professional printing solutions for a diverse range of industries, including food, pharmaceuticals, toys, cosmetics, daily chemicals, electronics, and decorative products. Leveraging a full suite of automatic printing technologies—such as screen printing, pad printing, hot stamping, labeling, offset printing, and digital printing—the company excels at delivering high-quality, intricate graphics and texts on the surfaces of products in various shapes, crafted from materials like plastic, metal, glass, and ceramics.
