1-8 Color Modular Bottle Screen Printer For Round Containers Up To 100pcs/Min
Détails sur le produit:
| Lieu d'origine: | CHINE |
| Nom de marque: | Senny |
| Certification: | CE SGS |
| Numéro de modèle: | SL1466 |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 set |
|---|---|
| Prix: | negotiable |
| Détails d'emballage: | Paquet de contreplaqué |
| Délai de livraison: | un mois |
| Conditions de paiement: | T / t |
| Capacité d'approvisionnement: | 10pcs / mois |
|
Détail Infomation |
|||
| Grade automatique: | Entièrement automatique | Type de plaque: | Écran d'imprimante |
|---|---|---|---|
| Couleurs imprimées: | 1 à 8 | Impression de durabilité: | Durabilité élevée |
| Garantie: | 1 an | Service après-vente: | Vidéo ou en ligne |
| Certification: | CE SGS | Package Detials: | Paquet de contreplaqué |
| Conditions de paiement: | T / t | ||
| Mettre en évidence: | modular bottle screen printer,round container screen printer,high-speed bottle screen printer |
||
Description de produit

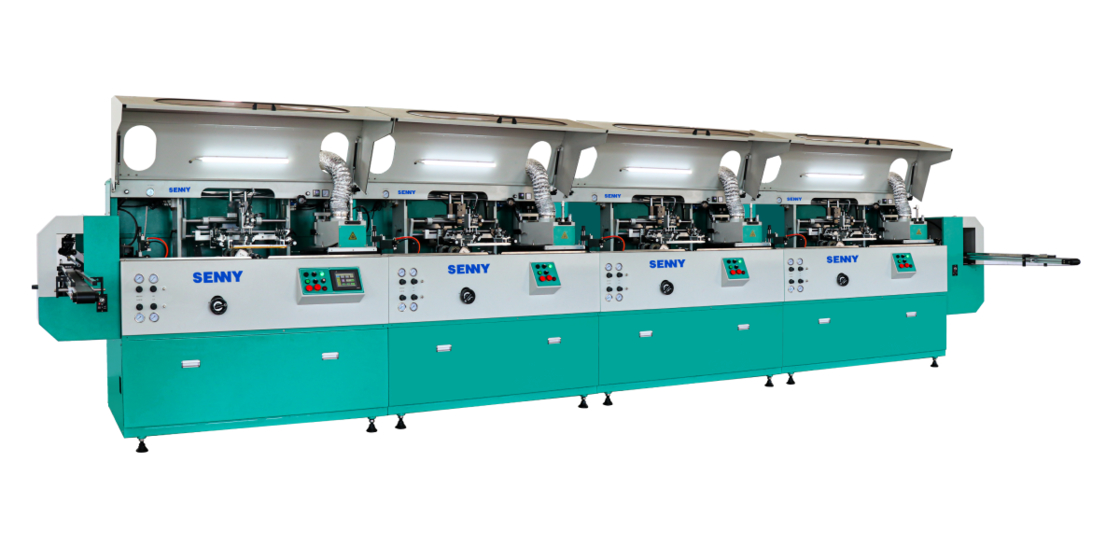

1-12 Color Modular Bottle Screen Printer For Round Containers Up To 100pcs/Min
Features:

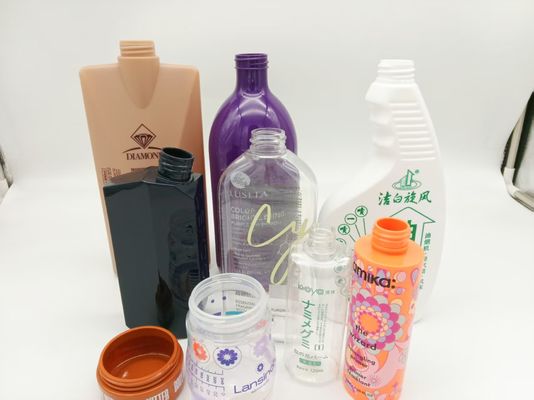

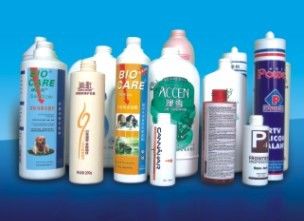

The SL1466 Container UV Screen Printing Machine is a fully automatic screen printing equipment for cylindrical and special-shaped containers, with an extremely wide range of applications. It can perform screen printing on various cylindrical and special-shaped containers such as plastic bottles, metal cans, glass jars, ceramic bottles, and stainless steel kettles. It is capable of printing thermosetting inks of various colors, meeting the container decoration needs of different industries including food and beverage, beauty and skin care, daily chemicals, and crafts. Whether it is a simple logo, an intricate pattern, or a gradient color effect, this machine can achieve high-precision and high-quality printing, ensuring that the printed patterns are clear and bright with strong adhesion.
Technical Specifications
| Machine running speed | Up to 100pcs/min |
| Product height | 20-300mm |
| Round bottle diameter | 20-120mm |
| Maximum printing area | length 300* height 200mm |
| Gas supply | 0.15mpa |
| Air pressure requires | 6-7 BAR |
| Voltage requirement | 3-phase 5-wire 380V 50/60Hz |
| Rated power | 7KW(1 color ) * N colors |
| Machine weight | Main machine-1200kgs; Auxiliary machine-1000kgs |
| Machine size |
Main machine-L 2900mm * W 1200mm * H 2000mm(excluding feeding and uploading convey belt) Auxiliary machine-L 1900mm * W 1200mm * H 2000mm |
Main functions:
Feeding System
Gearbox feeding: Stably conveys products to be processed
Robot vacuum directional feeding: Accurately transfers materials in a fixed direction
Surface Treatment
Host speed-regulating motor-driven surface treatment: Adjusts treatment intensity on demand
Electrostatic dust removal: Effectively eliminates static electricity and dust on product surfaces
Flame surface treatment: Enhances material surface adhesion
Printing Aids
Pre-positioning: Ensures products are in accurate positions before printing
Container adjustable pressure inflatable printing: Adapts to different containers via inflation pressure adjustment
Automatic screen printing: Realizes automatic printing operation
Motorized printing head lifting: Facilitates screen loading/unloading
Motorized screen lifting: Simplifies screen wiping
Curing System
High-intensity U.S. UV lamp curing (optional LED-UV curing): Ensures rapid curing of printed patterns
Speed-regulating motor rotation (for cylindrical containers): Guarantees uniform curing when passing UV
Unloading System
Robot vacuum unloading: Smoothly unloads finished products
Unloading speed-adjustable conveying: Flexibly adjusts finished product conveying speed
Customer Factory using our machine
Exihibition Show
