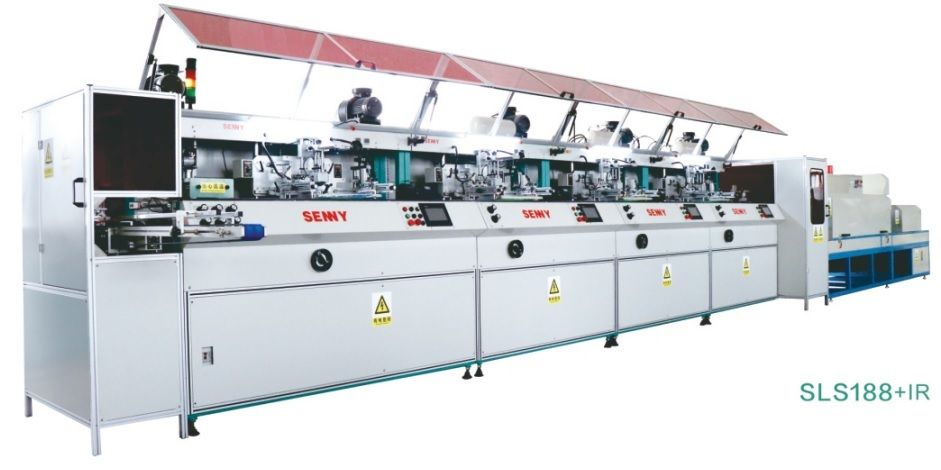

Easy-To- Touchscreen Operation Bottle Screen Printer For Plastic Bottles And Cans With Independent Drying Function
Détails sur le produit:
| Lieu d'origine: | CHINE |
| Nom de marque: | Senny |
| Certification: | CE SGS |
| Numéro de modèle: | SLS1888-IR5312 |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 set |
|---|---|
| Prix: | negotiable |
| Détails d'emballage: | Paquet de contreplaqué |
| Délai de livraison: | un mois |
| Conditions de paiement: | T / t |
| Capacité d'approvisionnement: | 10pcs / mois |
|
Détail Infomation |
|||
| Grade automatique: | Entièrement automatique | Type de plaque: | Écran d'imprimante |
|---|---|---|---|
| Couleurs imprimées: | 1 à 12, peut être personnalisé | Impression de durabilité: | Durabilité élevée |
| Garantie: | 1 an | Service après-vente: | Vidéo ou en ligne |
| Conditions de paiement: | T / t | Délai de livraison: | 45 jours |
| Certification: | CE SGS | Détails du package: | Paquet de contreplaqué |
| Mettre en évidence: | touchscreen bottle screen printer,plastic bottle screen printer with drying,can screen printer with touchscreen |
||
Description de produit
Easy-To- Touchscreen Operation Bottle Screen Printer For Plastic Bottles And Cans With Independent Drying Function
Machine Features:
- This machine is suitable for screen-printing IR inks of various colors on plastic bottles with shapes such as round, oval, and square.
- The machine adopts a digitally controlled servo motor to drive products for 360-degree printing, enabling Industry 4.0 remote management and services. This allows for real-time monitoring of equipment operation status, remote parameter adjustment, and timely troubleshooting, greatly improving production management efficiency and reducing maintenance response time.
- It is equipped with electrical components from well-known brands, along with an easy-to-use touchscreen operation and a PLC control system, ensuring reliable performance. The user-friendly interface makes operation simple even for new operators, while the stable control system guarantees consistent printing quality and minimizes operational errors.
- Featuring a highly customizable modular structure, the machine can be linearly connected to form a 1-8 color printing press. This modular design not only facilitates flexible configuration according to different production needs but also simplifies future upgrades and expansions, allowing enterprises to adjust production capacity and functions in a cost-effective manner.
- The standard configuration of the machine includes screen-printing and IR curing modules. It can also be optionally connected with independent modules such as hot stamping, labeling, and quality inspection to form a multi-functional printing press. This integration of multiple processes enables one-stop production from printing to post-processing, significantly enhancing overall production efficiency and product added value.
Technical Specifications:
| Specification/Model | SLS1888-IR5312 |
| Printing speed | Up to 40pcs/min |
| Diameter of bottle | 20–160mm |
| Height of bottle | 50–300mm |
| Printing length | 300mm |
| Printing height | 250mm |
Applications
SLS1888-IR 5312 CNC Plastic Bottle Servo-Driven IR Brushing Machine is a fully automatic plastic bottle surface treatment equipment. Its application range is quite extensive, and it can be used for surface brushing treatment of various plastic bottles, such as PET bottles, PE bottles, PP bottles, PVC bottles, etc.
This model is suitable for printing various colors of thermosetting inks on the surface of plastic round, oval, square bottles and cans (e.g. feed bottles, water bottles).
The printing function of the machine is servo-driven, allowing easy 360-degree printing through digital control.
The machine is modular, with each module containing independent screen printing and hot-air surface drying functions, and linear combination connections for up to an 8-color integrated production line.
After printing, the finished product enters an oven at a maximum temperature of 120° and is baked by a robot for 10 minutes for complete curing.
