2 Color Screen Printing And Hot Stamping Machine High Precision And Speed For Round Containers And Tubes
Détails sur le produit:
| Lieu d'origine: | CHINE |
| Nom de marque: | Senny |
| Certification: | CE SGS |
| Numéro de modèle: | SR1238-2CH |
Conditions de paiement et expédition:
| Quantité de commande min: | 1pc |
|---|---|
| Prix: | negotiable |
| Détails d'emballage: | Paquet de contreplaqué |
| Délai de livraison: | un mois |
| Conditions de paiement: | T / t, l / c |
| Capacité d'approvisionnement: | 10pcs / mois |
|
Détail Infomation |
|||
| Couleur d'impression: | 2 couleurs | Type de plaque: | Écran d'imprimante |
|---|---|---|---|
| Impression de durabilité: | Durabilité élevée | Couleur d'estampage chaud: | 1 couleur |
| Garantie: | 1 an | Service après-vente: | Vidéo ou en ligne |
| Détails du package: | Paquet de contreplaqué | Conditions de paiement: | T / t |
| Certification: | CE SGS | ||
| Mettre en évidence: | 2 color screen printing machine for round containers,hot stamping machine high precision tubes,screen printing and hot stamping machine |
||
Description de produit

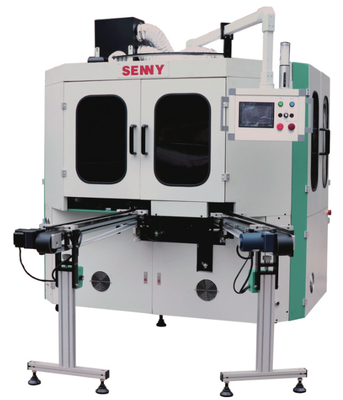

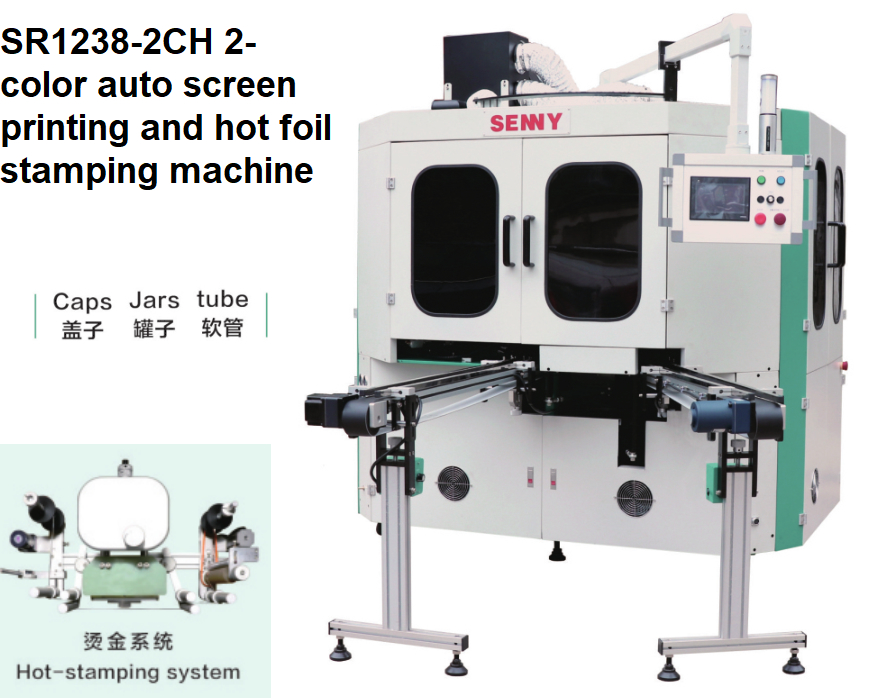

2 Color Screen Printing And Hot Stamping Machine High Precision And Speed For Round Containers And Tubes
Technical Specification:
| Product diameter | Φ20-Φ80mm |
| Product height | 20-200mm |
| Printing Speed | Up to 3000pcs/hr |
| Max Printing Area | L250mmxW150mm |
| Max screen frame size | L450xW250mm |
Features:
1. Few tools, simple operation, low maintenance cost and high accuracy. High precision of color-to-color registration.
2. Servo motor control, equipped with various monitoring systems to ensure the stability and safety of the machine when running at high speed.
3. According to the product characteristics, the machine is equipped with hot stamping system, which can also be customized according to your specific requirements.
4. Customizable machine specifications: Both the overall size and exterior color of the machine can be tailored to meet on-site space constraints (e.g., narrow workshop layouts) or brand image needs (e.g., matching existing production line color schemes), enhancing compatibility with diverse application scenarios.
5. High-precision integrated design: The machine is equipped with automatic screen overprinting and hot stamping functions, with a strict tolerance control of less than 0.2mm to ensure ultra-high printing accuracy for fine patterns or text. It adopts an independent servo variable frequency speed control device, enabling stable operation and a maximum printing speed of 3000 pieces per hour—suitable for large-batch production demands. Additionally, the servo gearless structure not only accelerates fixture replacement (reducing downtime between product model changes) but also minimizes the number of wearing parts, lowering long-term maintenance costs and extending the machine’s service life.
Applications:
This machine is a multifunctional rotary multi-color screen printing machine. It is mainly used for printing on hoses, cans and bottle caps. It is characterized by simple operation, accurate positioning, high degree of automation and fast printing speed.

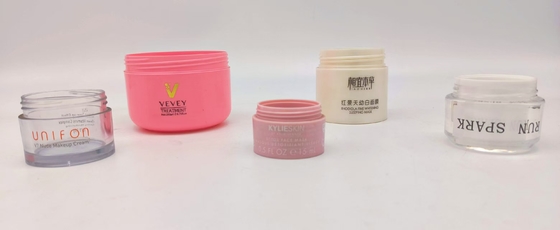

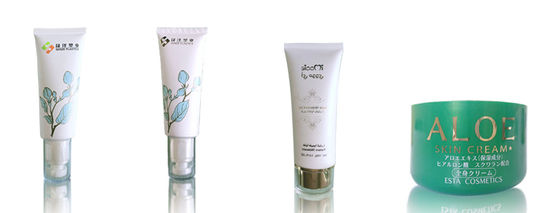

Printing samples
Exhibition
About us:
SENNY PRINTING EQUIPMENT CO.,LTD was established in the year 2004, it is specialized in designing and manufacturing precise automatic screen printing machines, stick labler machines, hot stamping machines and auxiliary equipments. Meanwhile, they can design any kinds of automatic printing machines according to customers' requirements.
SENNY has very good designers. The founder of SENNY was engaged in designing and developing screen printing machines early from the year 1994, and he got many achievements: he designed the first automatic screen printing machine; automatic screen printing machine for big iron pails; four colors sereen printing machine for big oil kettles; automatic screen printing machines controlled by module independently for bottles; automatic screen printing machine for pails from 10L 1o 20L(3colors and 7colors) and so on so forth.
In order to improve our products, SENNY adopts the advantages of the similar products in or abroad, and we also take customers' comments and suggestions into consideration. With the innovation and improvement for many years, the products produced by SENNY now are in a leading position in the domestic markets. And it also sales well all around the world.
With the mission“Excellence,Creation,Sincerity,Quality!”,SENNY insists on providing high--quality products and services, dedicating to exploring the new markets and seeking for mutual benefit and win-win state with our customers.
