Fully Automatic Caps Printing Machine
Détails sur le produit:
| Lieu d'origine: | Dongguan Chine |
| Nom de marque: | SENNY |
| Certification: | CE SGS |
| Numéro de modèle: | SOS2022 |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 pièce |
|---|---|
| Prix: | negotiable |
| Détails d'emballage: | paquet de contreplaqué |
| Délai de livraison: | un mois |
| Conditions de paiement: | T/T, LC |
| Capacité d'approvisionnement: | 10pcs / mois |
|
Détail Infomation |
Description de produit

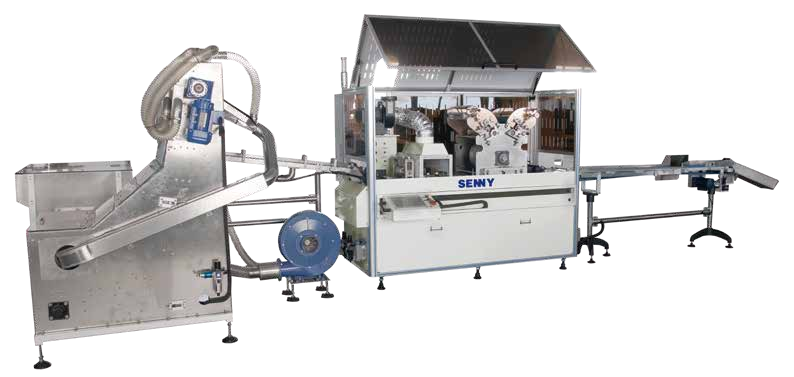

It is specially designed for customers who need bottle cap printing with high-speed, lower cost and simple operation. Machine design is based on the principle of dryoffset printing, equipped with unique magnetic rollers, two sets of dual-color offset printing units and one set of vanishing unit, it can achleve image printing with accurate registration and overlap. Control by PLC with touch screen interface, it organizes a high efficiency production line.
1. Features:
- Equipped with two automatic escalators, it can store a large volume of caps and feed the correct number of caps into the unscrambler.
- Two unscrambler are used for guide the caps to the correct direction and feed to the main printing machine.
- This cap printing machine equipped with 1 set of 3-color offset printing unit
- Standard using LPG gas for surface treatment before printing.
- 2 flame heads, which make the surface treatment more efficiently.
- The jig mandrel will be made according to the samples' specification given to us, and delivered together with the machine.
- The Fusion UV system has automatic temperature control and extraction system which avoid the lamp over-heated & maximized the lamp efficiency.
- This system composed by bottle cap counter and printing detection system.
2. Technical Specifications
| Machine running speed | Up to 1600pcs/min |
| Gas supply | 0.15mpa |
| Air pressure requires | 6-7 BAR |
| Voltage requirement | 3-phase 5-wire 380V 50/60Hz |
3. Applicable industries: cosmetic, daily chemical, food, pharmaceutical, health products, baby products, automotive supplies, cleaning supplies , alcohol, glass glue, toy, sporting goods and so on.
